BBR MD 1160

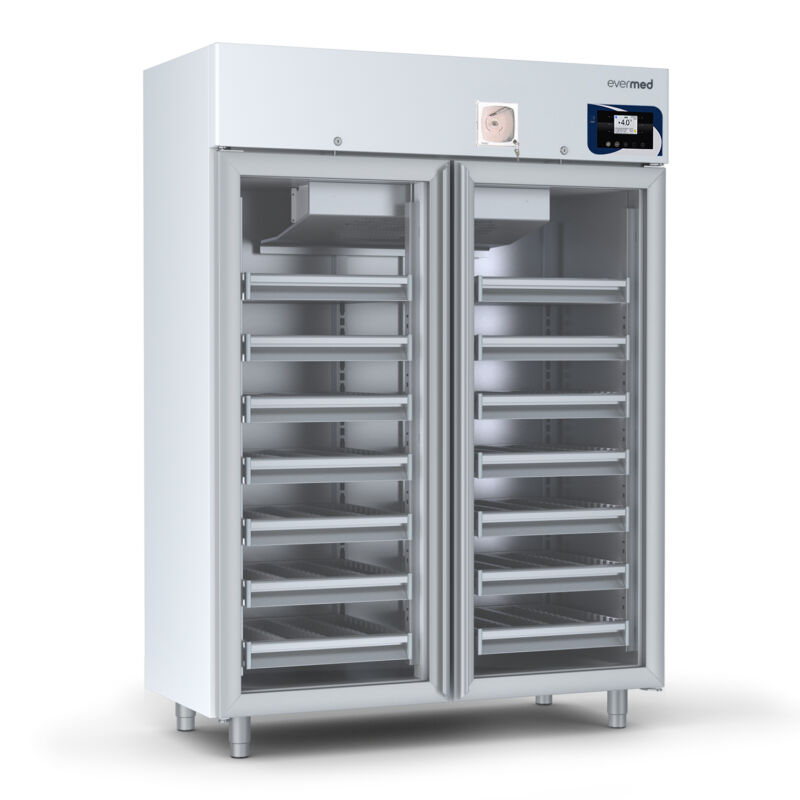

BBR MD 1160 Blood Bank Refrigerator

  • 3.5” TFT color control panel with capacitive buttons and password
  • Automatic test facilities for temperature alarms and functioning status
  • Backup battery for managing alarms in case of power failure
  • Audible and visual alarms
  • Temperature chart recorder
Download Technical Data Sheet

Technical Features

Product Code




Refrigeration Type

Forced air

Climatic Class

+16°C / +38°C (ST)

Gross Capacity (liters)


Net Capacity (liters)


External Dimensions (W x D x H mm)

1500 x 770 x 2080

Packaging Dimensions (W x D x H mm)

1560 x 940 x 2240

Electrical Data

Power Supply (V/ph/Hz)


Power Plug

Type F

Structural Features

External Material

Anti-bacterial coated steel white colour

Insulation Thickness (mm)


Internal Lighting Type

LED stripe with UVA for air sterilization

Drawers with extractable slides


Control Panel

Display Type

TFT 3,5"

Alarm Signaling

Acoustic and visual

Alarm Functionality Test

Data and Event Storage

Yes (on internal memory)

Dry Contact

Yes (NO)

Backup Battery for Display and Alarms


  • Plastic drawer divider
  • Drawer Perspex front shield
  • Castors Ø 95 mm, 2 with brakes
  • Door key locking
  • Data-logger function with USB port (available for xPRO control panel only)
  • Ballasted sensor for simulation of the product temperature alarm (available for xPRO control panel only)
  • Porthole with cover Ø 18 mm
  • Porthole with cover Ø 45 mm
  • Back-up cooling unit (available for xPRO control panel only)
  • Solid door
  • Safety anti-freezing thermostat
  • Temperature uniformity and stability kit (<± 2°C)
  • Refrigerant R452a
  • GSM/GPRS telephone dialer
  • Voltage 230V/1ph/60Hz
  • Voltage 115V/1ph/60Hz
  • Plug type A
  • Plug type B
  • Plug type G
  • Plug type I
  • Wooden crate packing
  • IQ Documentation
  • OQ Documentation
  • PQ Documentation
