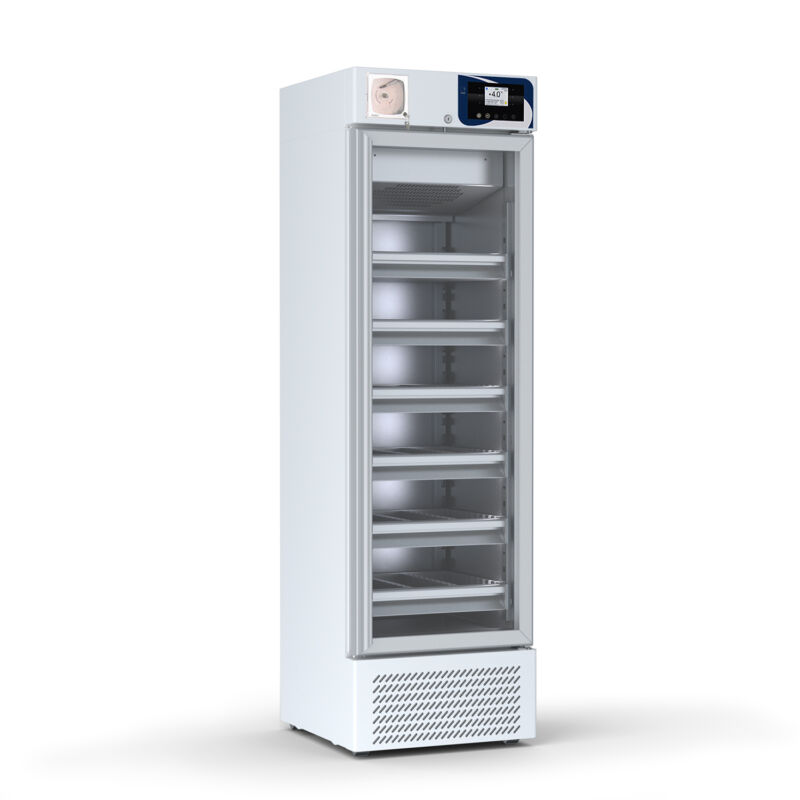

BBR MD 370 Blood Bank Refrigerator
Color
Panel
Request a quote
Add this product to the quote request list.
- 3.5” TFT color control panel with capacitive buttons and password
- Automatic test facilities for temperature alarms and functioning status
- Backup battery for managing alarms in case of power failure
- Audible and visual alarms
- Temperature chart recorder
Download Technical Data Sheet
Technical Drawing Download
Technical Features
Product Code
ACD701B
Temperature
+4°C
Refrigeration Type
Forced air
Climatic Class
+16°C / +38°C (ST)
Gross Capacity (liters)
400
Net Capacity (liters)
370
External Dimensions (W x D x H mm)
600 x 670 x 2020
Electrical Data
Power Supply (V/ph/Hz)
220-230/1/50
Power Plug
Type F
Structural Features
External Material
Anti-bacterial coated steel white colour
Insulation Thickness (mm)
50
Internal Lighting Type
LED stripe with UVA for air sterilization
Drawers with extractable slides
6
Unidirectional Rollers
4
Control Panel
Display Type
TFT 3,5"
Alarm Signaling
Acoustic and visual
Alarm Functionality Test
Data and Event Storage
Yes (on internal memory)
Dry Contact
Yes (NO)
Backup Battery for Display and Alarms
Accessories
- Plastic drawer divider
- Drawer Perspex front shield
- Door key locking
- Data-logger function with USB port (available for xPRO control panel only)
- Ballasted sensor for simulation of the product temperature alarm (available for xPRO control panel only)
- Porthole with cover Ø 18 mm
- Porthole with cover Ø 45 mm
- Back-up cooling unit (available for xPRO control panel only)
- Solid door
- Safety anti-freezing thermostat
- Temperature uniformity and stability kit (<± 2°C)
- Refrigerant R452a
- GSM/GPRS telephone dialer
- Voltage 230V/1ph/60Hz
- Voltage 115V/1ph/60Hz
- Plug type A
- Plug type B
- Plug type G
- Plug type I
- Wooden crate packing
- IQ Documentation
- OQ Documentation
- PQ Documentation
Download Technical Data Sheet
Technical Drawing Download
