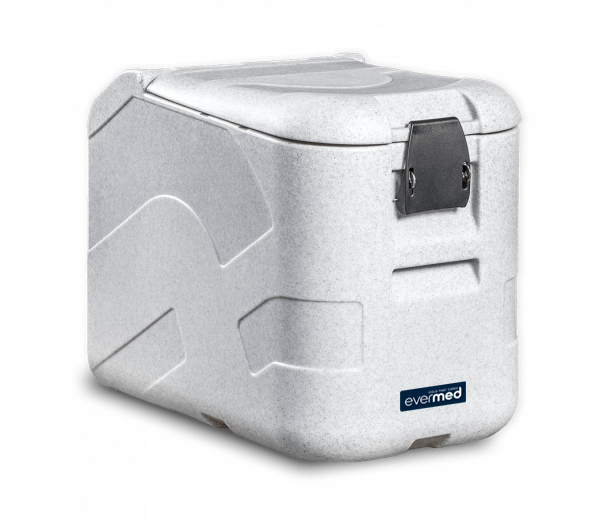

EPRF 32 HC Portable Refrigerator/Freezer
Panel
Request a quote
Add this product to the quote request list.
- Sturdy structure made in shock-proof plastic material, light grey colour, resistant to heavy duty-use. All the internal corners are rounded to make easy any cleaning operation.
- Important insulation thickness of high-density (40 Kg/m³) foamed-in-place polyurethane.
- Nr 2 handles with grooves at the sides of the structure.
- Nr 1 insulated lid, hinged, made with the same material and insulation as the rest of the structure. Perimetrical gasket, replaceable and special locking with hanging-levers to avoid sudden openings. Pre-arrangement for padlock.
- Cooling unit mounted in the right side of the box, with the condensing unit composed by Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled with a fan. Static evaporator roll-bond type that wrap the 4 sides of the storage chamber.
- LED backlit control panel
- Audible and visual alarms
Download Technical Data Sheet
Technical Drawing Download
Download Manual
Technical Features
Product Code
DDA324
Temperature
+40°C / -24°C
Refrigeration Type
Static
Climatic Class
+16°C / +38°C (ST)
Net Capacity (liters)
32
External Dimensions (W x D x H mm)
390 x 670 x 480
Electrical Data
Power Supply (V/ph/Hz)
12-24 DC
Power Plug
Cigarette-lighter plug
Structural Features
Insulation Thickness (mm)
60
Control Panel
Display Type
LED
Alarm Signaling
Acoustic and visual
Accessories
- Mains adapter for voltages 110-230V/1ph/50-60Hz
- Wooden crate packing
Download Technical Data Sheet
Technical Drawing Download
Download Manual
